Heliport MCL

1

Heliport reference point co-ordinates and site at heliport

53°11'18.62"N 005°48'10.15"E

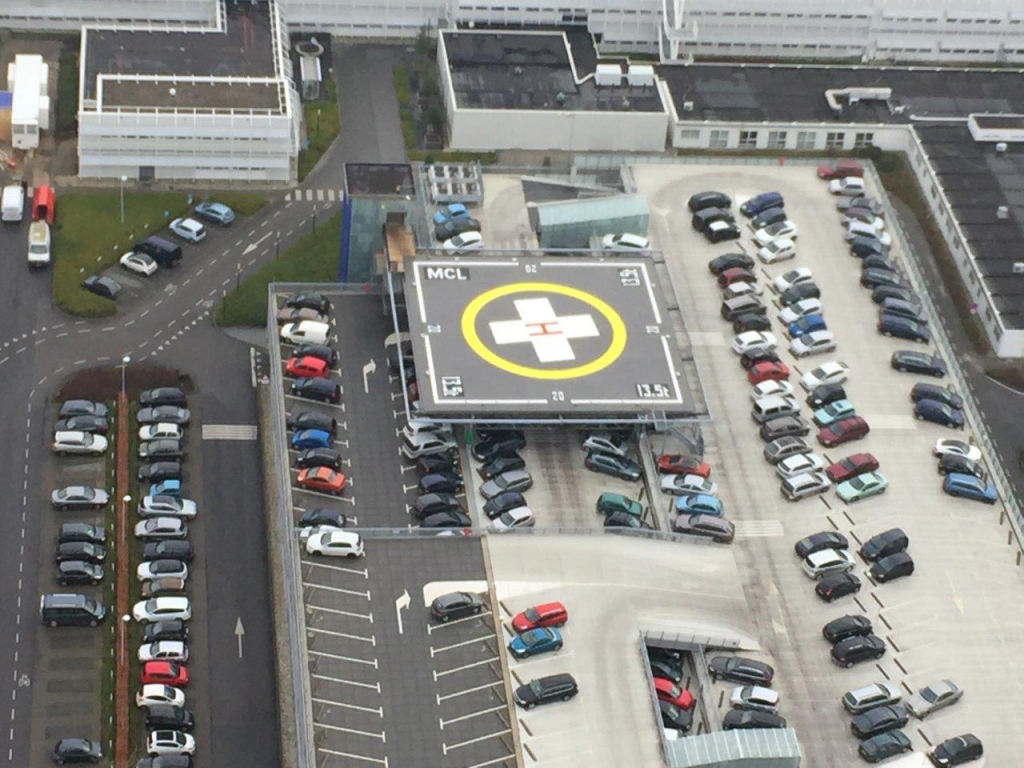

Southern part of Leeuwarden city, SW of hospital on roof of parking facility.

2

Elevation

46 ft AMSL.

3

MAG VAR/annual change

0°E (2010)/8'E.

4

Heliport operator, postal address, telephone, telefax, email, AFS, website

Medisch Centrum Leeuwarden, tel: +31 (0)58 286 6512.

5

Intended for

Multi-engined helicopters with an AUW of 13 500 kg that according to the flight manual may operate on a heliport with the dimensions mentioned below.

6

Purpose

Special heliport for medical purposes only.

7

Limitations on use

Flights to/from the heliport shall be executed in VMC.

8

Operational HR

H24. PPR 45 minutes on MON-FRI BTN 1500-0700 (1400-0600) and on SAT, SUN and HOL, tel: +31 (0)58 286 6512.

9

Competent ATS unit

ARO Leeuwarden, tel: +31 (0)58 234 6954.

10

Competent MET office

KNMI Aviation Services; MWO-De Bilt, tel: 0900 202 3341 (€ 0,50/min), only from abroad: tel +31 (0)30 220 6581 (international phone charges apply).

11

Rescue and fire fighting services

CAT H2.

1

FATO dimensions/surface

Not AVBL.

2

FATO markings

Not AVBL.

3

TLOF dimensions/surface

20 x 20 m/CONC.

4

TLOF markings

Heliport identification marking (red H on white cross).
TLOF marking (white line).

5

Obstacle limitation

Two approach surfaces AVBL 020° GEO and 170° GEO to FATO, slope 4,5%.
Two take-off surfaces AVBL 200° GEO and 350° GEO to FATO, slope 4,5%.

6

Significant obstacles

Building (height 57 m) 446 m SW of heliport.
Building (height 115 m) 1300 m NW of heliport, red lighting around rooftop.

7

Lights

Green perimeter lights along TLOF. Red obstacle lights.

8

Windsock

Illuminated wind direction indicator.

9

Remarks

NIL
